PRODUCT DESCRIPTION

Slewing Mechanism

ZJHS55A Series

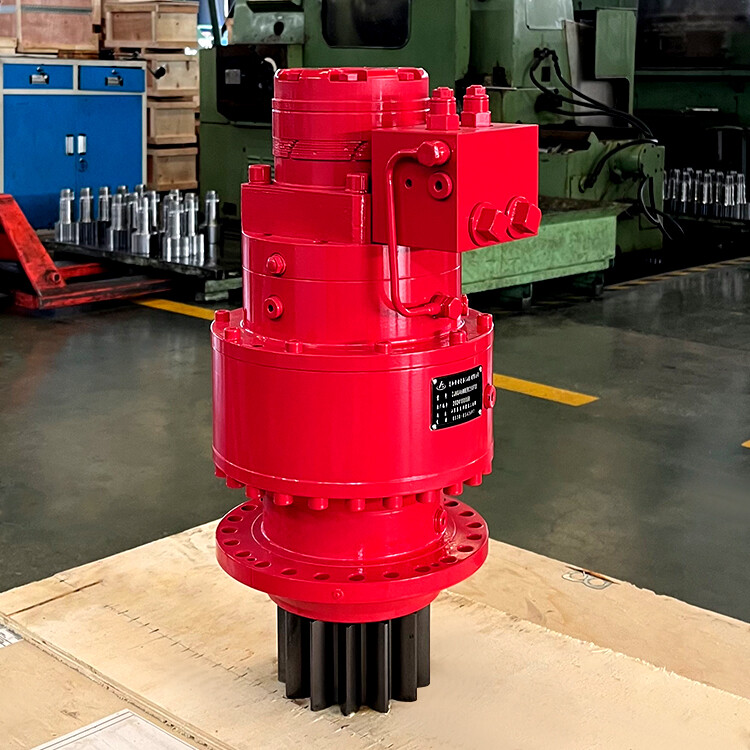

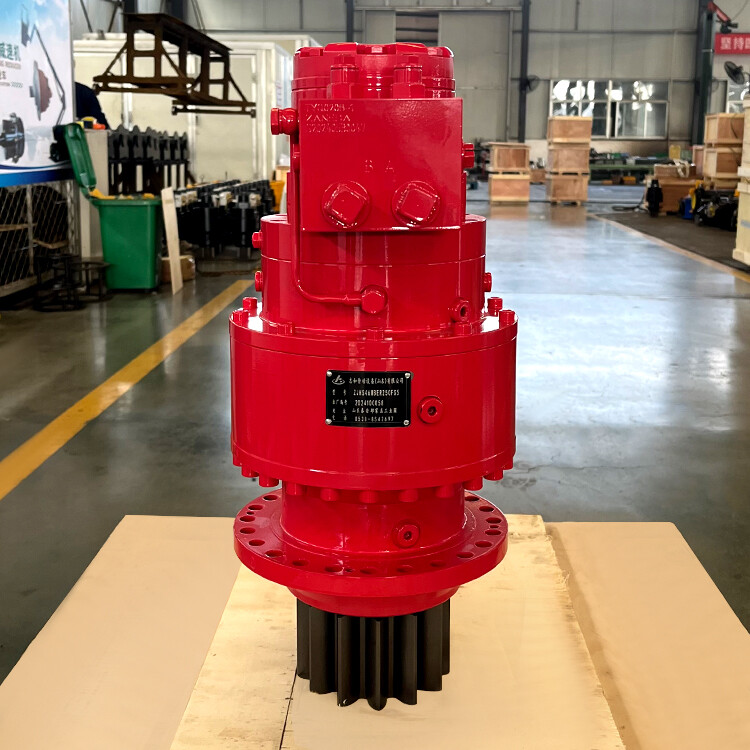

Slewing Mechanism ZJHS55A

Slewing reducer for truck crane


Production TypeCapacity(T)Output torque Maximum（N·m）Rated output speed (rpm)Transmission
ratio		Working Pressure
（Mpa）		Hydraulic motorRated Flow(L/min)Length*Width*HeightWeight
ZJHS22D1AMBR80FS36~725001423.2511BMR-8060Φ230*49156
XJHS25AZMPW160FS1830001520.58ZMPW-16060Φ212*47470
ZJHS25D1MBPW400FS183125156.7510BMPW-40060Φ215*46862
ZJHS25A8MBPW400FS183125156.7510BMPW-40060Φ240*48867
XJHS35FZMPW160FS18~104375152010ZMPW-16060Φ222*48562
XJHS40C3MBPW160FS112500010.519.3
22.5		11BMPW-160
BMPW-200
BMPW-250		60Φ230*43668
ZJHS40A3MBPW250FS112500010.519.3
 22.5		9BMPW-160
BMPW-200
BMPW-250		60Φ230*50370
XJHX45A2AMB5250GFS41255001527.610BMR-160         BMR-200        BM5-200        BM5-25060555*Φ23080
XJHS45J1MBER200FS512~1455001319.3
22.5		14BMER-125
BMER-160
BMER-200
BMER-250		60Φ230*53280
ZJHS45C
ZJHS45GBMR-250
BMR-315
ZJHS55DMBER160FS514~166800925.510BMER-160
BMER-200
BMER-250		45Φ245*54090
ZJHS75A1MBPW160FS118~207600113014ZMPW-160
ZMPW-200
ZMPW-250		60Φ320*570126
ZJHS100EMBER200FS518~20120001133.114ZMPW-160
ZMPW-200
ZMPW-250    BMER-160
BMER-200
BMER-250		60Φ320*615130

Note:

  1. The overall dimension, motor interface dimension, reduction ration, theoutput gear and other dimensions all could be designed as required.

  2. Reducer input rotating direction is the same as the output.
