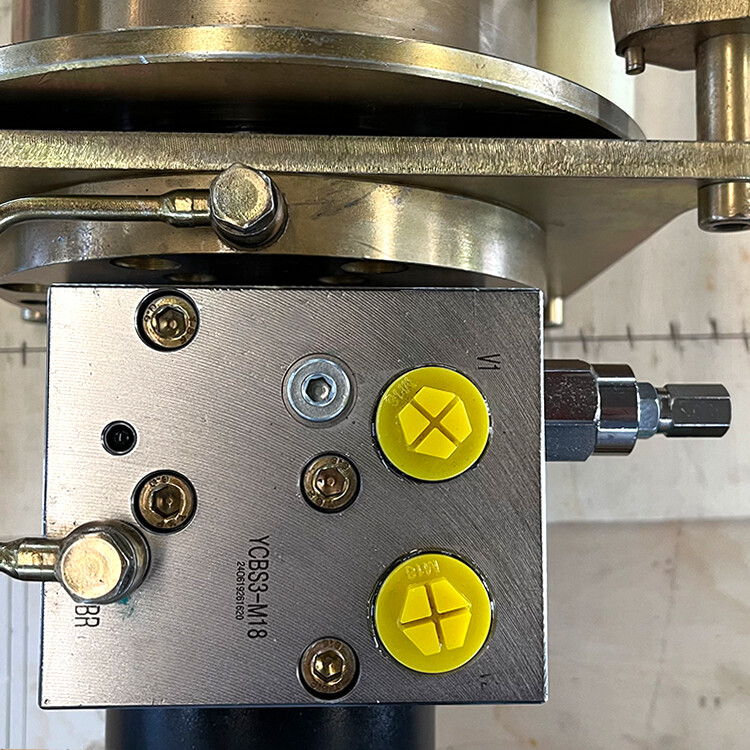

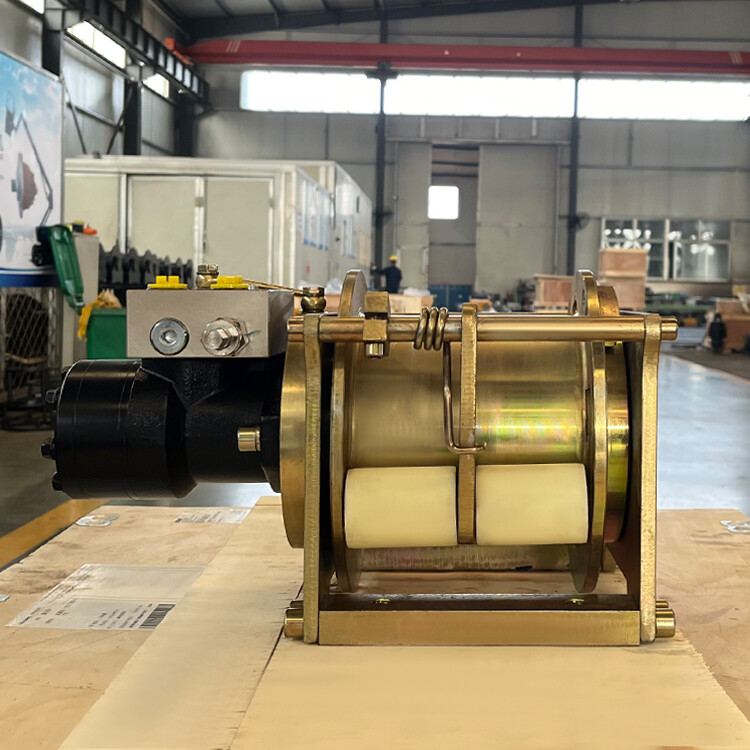

ZJQ08B3 Winch Deceleration Mechanism
Powerful power: easy to lift heavy loads.
Durable and efficient: Long life, save maintenance.
Compact design: suitable for multiple models.
Transmission ratio: 5
Output torque Maximum：1250
Single rope pull Maximum（N）: 13750
CONTACT US
MESSAGE
PRODUCT DESCRIPTION

Technical Parameters

Aerial Vehicle Lifting Reducer

Production TypeTransmission ratioOutput torque Maximum（N·m）Ratedoutput
speed (rpm)		Hydraulic motorBraking torque
(N·m)		Single rope pull Maximum（N)Length*Width*HeightWeight
ZJQS08B3MBR160FD25125042BMR-100/125/16048013750400*232*23545
ZJQS10GMBR160FD25130042BMR-125/16048014000436*Φ27045
ZJQ1151000108BM5-1002609595333*271*26545
ZJQ126112532BM-C100P1A1Y1
BM5-100		2608000285*Φ31272

Note:

1. Connection with exteral winding drum, installation size, motor interfaces ,transmission ratio andother dimensionall could be designed as required.

2.Reducer input rotating direction is reverse to the output.
