Slewing Mechanism
ZJHS100 Series

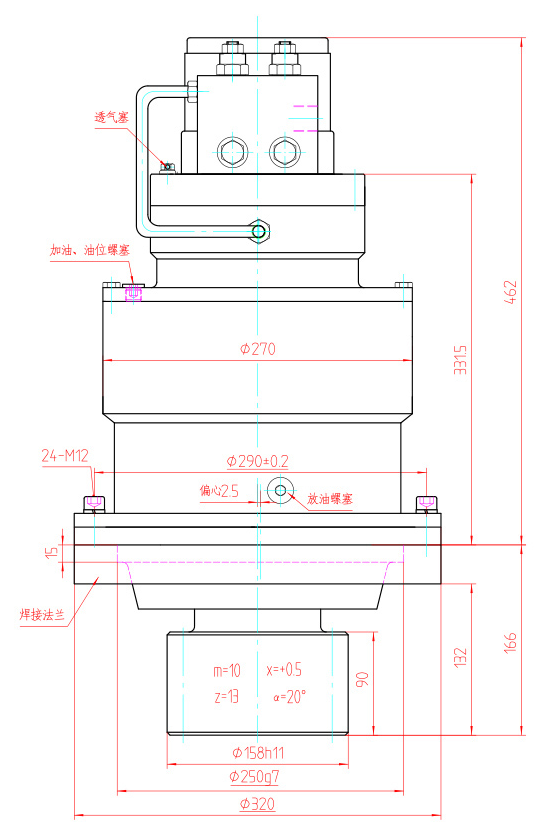

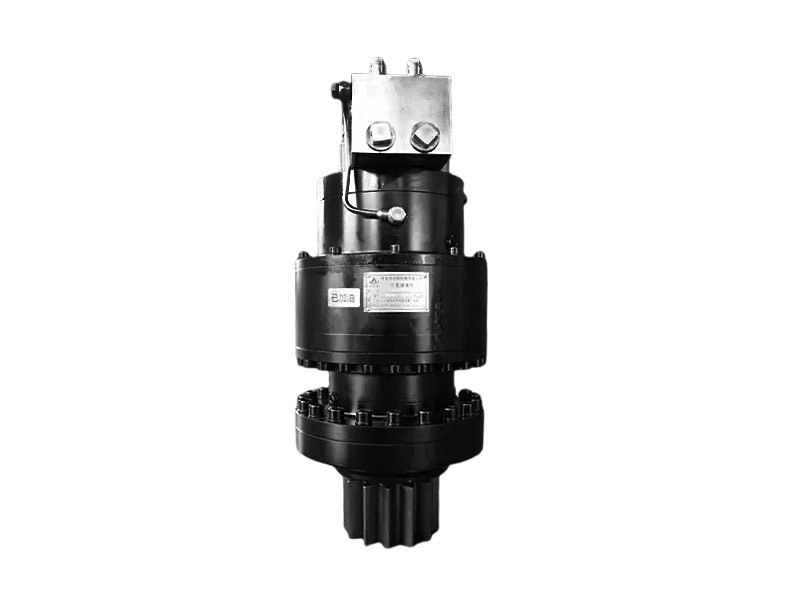

Slewing Mechanism ZJHS100
| Output torque Maximum (N.m ) | Rated output speed(rpm) | Transmission ratio | Working Pressure (Mpa) | Hydraulic motor | Rated Flow(L/min ) |
| 12500 | 10 | 23.6 | 14 | BMER-250 | 60 |
Note:
1. The overall dimension, motor interface dimension, reduction ration, theoutput gear and other dimensions all could be designed as required.
2 .Reducer input rotating direction is the same as the output.
