Hoist Reducer
ZJQ95E1 Series

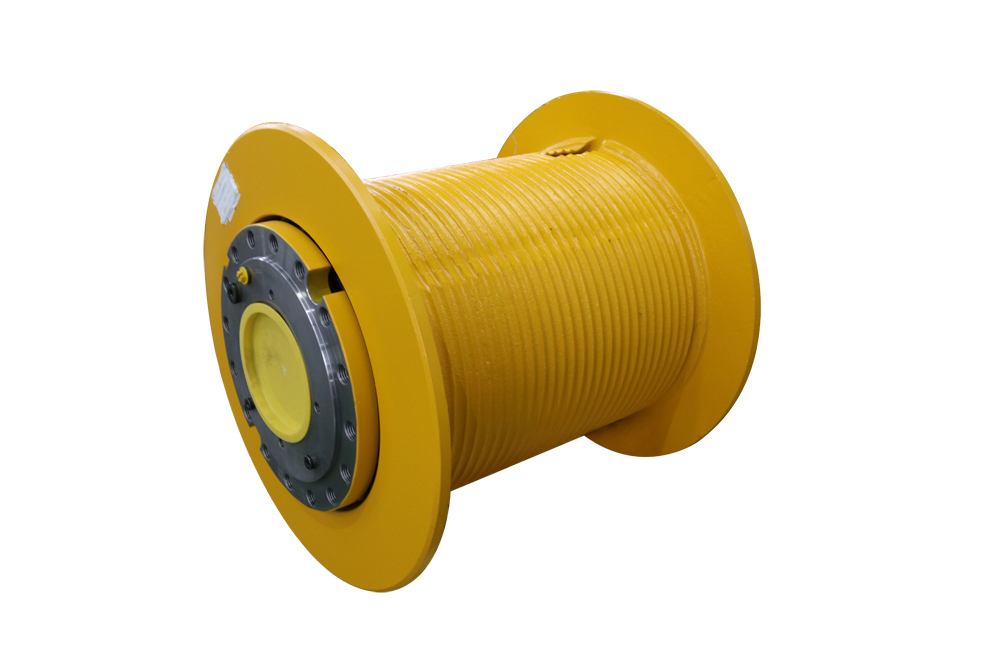

Hoist Reducer ZJQ95E1
| Hoist Reducer |
|
|
| Production Type | Capacity(T) | Transmission ratio | Output torque Maximum（N·m） | Hydraulic motor | Braking torque（N.M) | Single rope pull Maximum（N) | Length*Width*Height | Weight |
| XJQZ26 | 8 | 15.3
21.45 | 3125/3600 | A2F55W2
ZA2F56W6.1Z | 265 | 18000
20000 | 415*410*425 | 122 |
| XJQZ36 | 10 | 26.7 | 4400 | A2F55W2
ZA2F56W6.1Z | 296 | 25000 | 457*410*425 | 135 |
| XJQZ46 | 12 | 26/28.5/30.3/33.1 | 5100/6125 | A2F55W2Z
A2F56W6.1Z | 296 | 25000/30000 | 560*480*520 | 145 |
| ZJQ60/ZJQ62 | 16 | 29.6/33.1/35.6/39.9 | 7900 | A2F55W2Z
A2F56W6.1Z A2F80W2Z | 330 | 38000 | 593*520*520 | 166 |
| ZJQ86 | 20~25 | 32.9/42.5 | 11200 | A2F63W2Z2
A6V80…Z
A6V107…Z | 523 | 46500 | 668*600*600 | 245 |
| ZJQ95 | 25~30 | 34/37.6/44.5 | 13000 | A2F63W2Z2
A6V80…Z
A6V107…Z | 540 | 54000 | 668*600*600 | 265 |
| ZJQ125 | 30~50 | 39.7/42/45.6/48 | 16800 | A6V80…Z
A2F80W2Z
A6V107…Z | 540 | 65000 | 668*600*600 | 286 |
| ZJQ135 |
| 775*620*620 | 360 |
| ZJQ150 | 60~70 | 36.8
45.4
50.52
| 18000 | A6V107HDIDFZ2
A2F80W2Z2
A2FE56/61W-VZL
A2FE63/61W-VZL
A6VE56/61W-VZL
A6VE55/63-VZL
A6VE63/61W-VZL | 621 | 64000 | 842*642*642 | 390 |
| ZJQ210 | 80~100 | 62/67
78.8
79.4
81
101
116.6 | 26000 | A2FE55/61W-VZL
A2FE56/61W-VZL
A2FE80/61W-VZL
A2F80/61WVAL10
A2F107W1Z12
A6VE55/63W-VZL
A6VE80/63W-VZL | 710 | 90000 | 510*550*550 | 435 |
| ZJQ220 | 70~80 | 49.8/58.8 | 27000 | A6V80…Z
A2F80...Z
A6V107…Z A2F125...Z
| 750 | 85000 | 790*765*765 | 632 |
| ZJQ350 | 100~120 | 86.5/94.8/105.5 /119.8/139.9/169.9 | 42500 | A6V107…Z
A2F107...Z
A6V125…Z A2F125...Z A6V160…Z A2F160...Z A6V200…Z A2F180...Z
| 694 | 125000 | 996*740*740 | 800 |
| ZJQ450 | 120~160 | 76.1/84/94.5/109 | 60000 | A6V107…Z
A2F107...Z
A6V125…Z A2F125...Z A6V160…Z A2F160...Z A6V200…Z A2F180...Z
| 988 | 150000 | 1075*920*920 | 1000 |
| ZJQK35 | 8~10 | 25.6 | 4000 | A2F55W2
ZA2F56W6.1Z | 265 | 25000 | 716*420*445 | 245 |
ZJQK180
| 50 | 44 | 18000 | A2F/A6V107…Z | 710 | 64000 | 742*680*680 | 625 |
| ZJQKZ400 | 80 | 56 | 26000 | A2F/A6V107…Z | 797 | 82000 | 1100*780*980 | 800 |
Note:

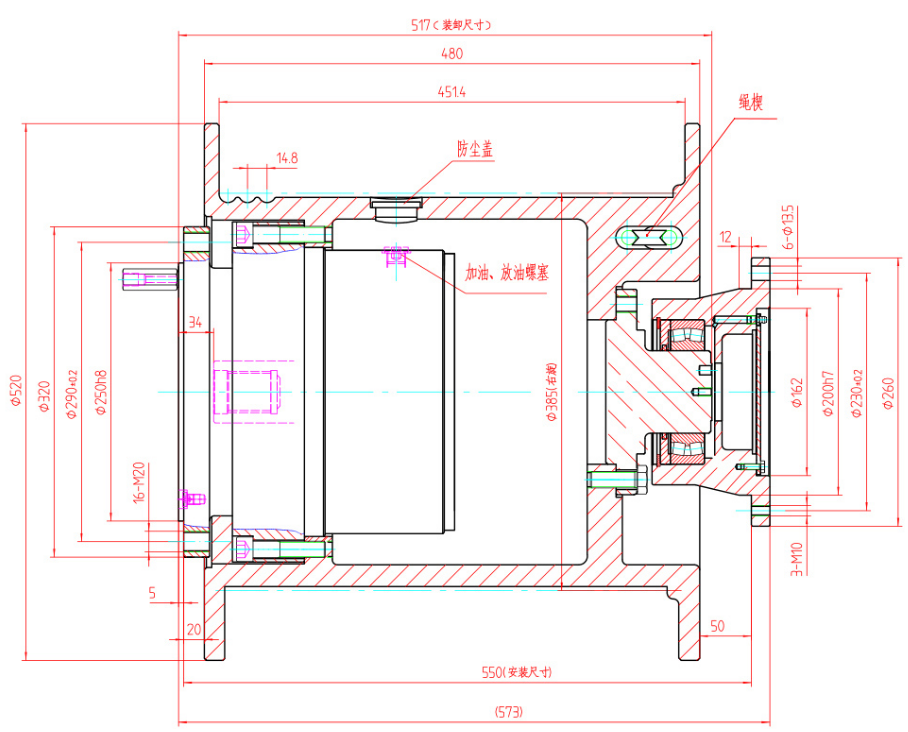

1. Connection with external winding drum, installation size, motor interfaces ,transmission ratio and other dimension all could be designed as required.
2.Reducer input rotating direction is reverse to the output.
