Rotary Reducer
ZJHS30A Series
Technical Parameters
| Aerial Vehicle Slewing Reducer |
|
|
|
| Production Type | Capacity(T) | Output torque Maximum（N·m） | Output speed
Maximum（rpm） | Transmission
ratio | Braking torque
（N·m） | Hydraulic motor | Rated Flow(L/min) | Length*Width*Height | Weight |
| ZJH16F1MBR400FS3 | 4 | 2000 | 25 | 6 | 400 | BMR-400 | 60 | 490*Φ216 | 43 |
| ZJH20H |
| 3000 | 10 | 6 | 450 | BM-D320
BM6-310 | 60 | 359.5*Φ280 | 48 |

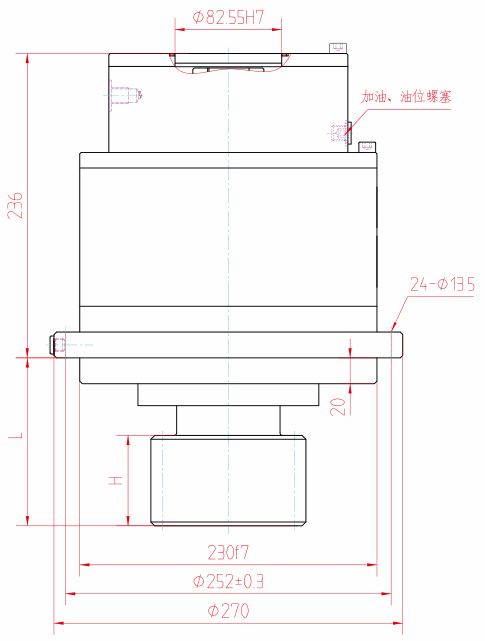

| ZJHS30AMB5400FFSS3 |
| 4000 | 12 | 6 | 650 | BM5-400 | 60 | 650*Φ270 | 85 |
| ZJHG28 |
|
|
|
|
|
|
|
| 70 |
| ZJHG30 |
| 4000 | 15 | 23.2/34.7 | 200 | BMR80 BMR100 BMR160 | 60 | 532*Φ278 | 60 |
| ZJHG50 |
| 6500 | 17 | 56 | 210 | OMP50 MJH63 | 60 | 380*275*561 | 102 |
Note:
1.Connection with external winding drum, installation size, motor interfaces ,transmission ratio and other dimensionall could be desianed as required.
2.Reducer input rotating direction is the same as the output.
