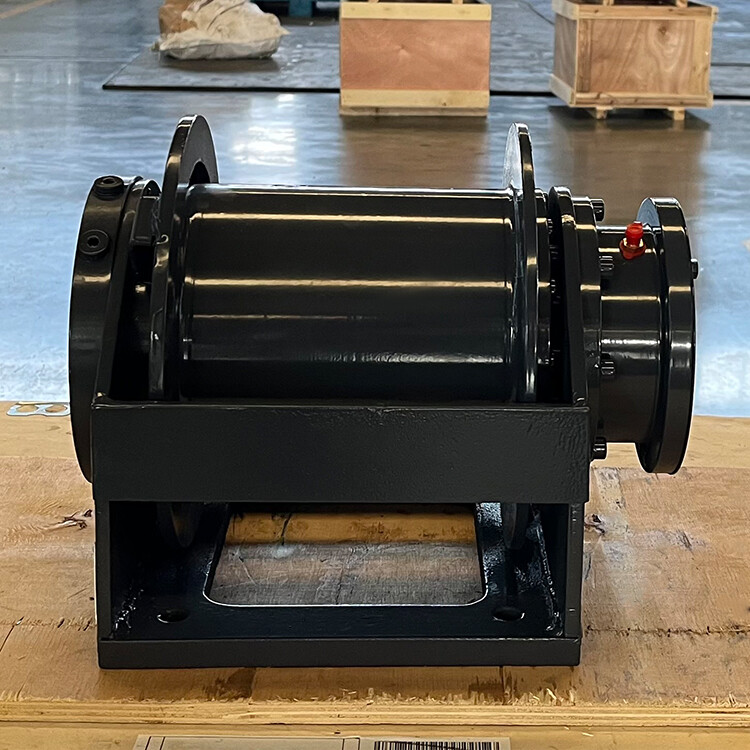

Hoisting Reducer
ZJQ11 Series
Technical Parameters
| Aerial Vehicle Lifting Reducer |
|
|
| Production Type | Transmission ratio | Output torque Maximum（N·m） | Ratedoutput
speed (rpm) | Hydraulic motor | Braking torque
(N·m) | Single rope pull Maximum（N) | Length*Width*Height | Weight |
| ZJQS08B3MBR160FD2 | 5 | 1250 | 42 | BMR-100/125/160 | 480 | 13750 | 400*232*235 | 45 |
| ZJQS10GMBR160FD2 | 5 | 1300 | 42 | BMR-125/160 | 480 | 14000 | 436*Φ270 | 45 |

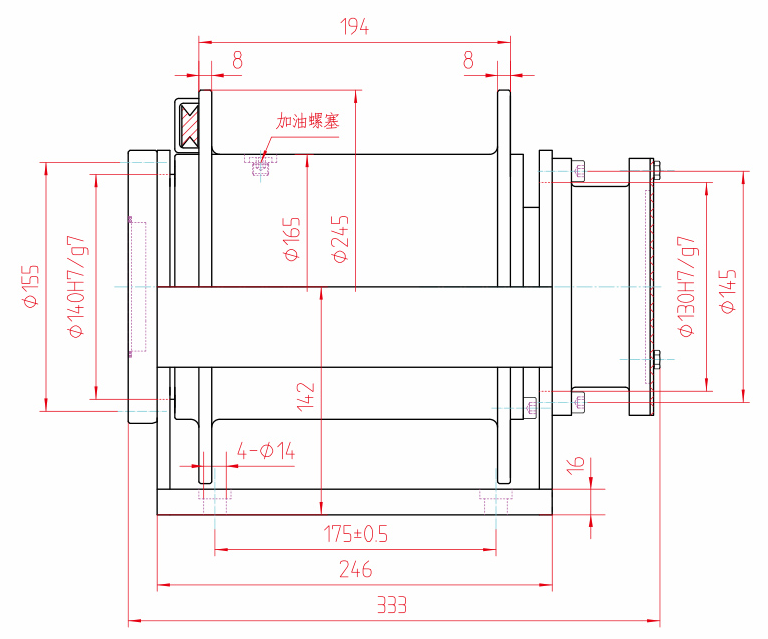

| ZJQ11 | 5 | 1000 | 108 | BM5-100 | 260 | 9595 | 333*271*265 | 45 |
| ZJQ12 | 6 | 1125 | 32 | BM-C100P1A1Y1
BM5-100 | 260 | 8000 | 285*Φ312 | 72 |
Note:
1. Connection with exteral winding drum, installation size, motor interfaces ,transmission ratio andother dimensionall could be designed as required.
2.Reducer input rotating direction is reverse to the output.
