PRODUCT DESCRIPTION

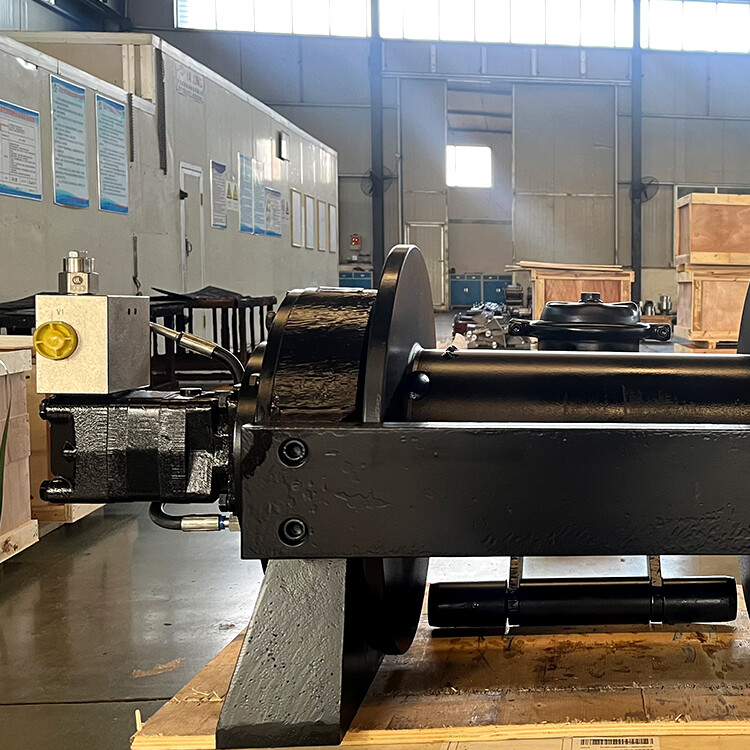

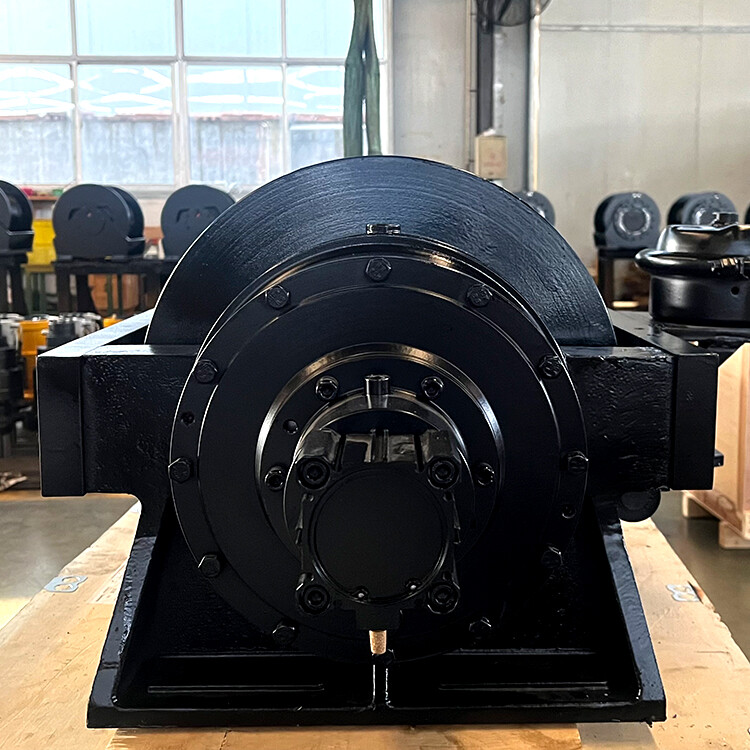

Hydraulic Winch

ZJJ10 Series


Technical Parameters

Hydraulic Winch

Production TypeCapacity(T)Flow(L/min)Single rope pull of
first layer(KN)
Rope speed of
first layer (m/min)
Rope diameter
(mm)
Rope capacity
(m)
Working Pressure
(Mpa)
Length*Width*HeightWeight
ZJJ06MBR80660609112114538*372*25158
ZJJ08AY2MBER160FD10860787.5Φ163517660*560*350160
ZJJ08BMBER160FD10860986Φ154014620*456*276145
ZJJ10YMB5160AFD51060987Φ1860171075*650*405255
ZJJ15YMB5250AFD5151101476Φ2270161116*642*420316
ZJJ20Y2MB6315BFD3201201966Φ2660171162*650*420350
ZJJ25Y1MB6315BFD3251202455.5Φ3055181236*610*550608
ZJJ30BY1MG2300D240101301203008.5Φ3077181266*1075*7101200

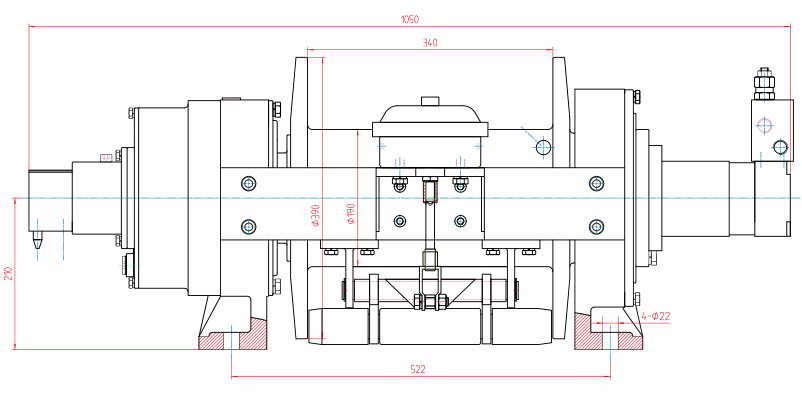

Note: The overall dimensions, motor interface dimension, reduction ration and other dimensionsall could be designed as required.
