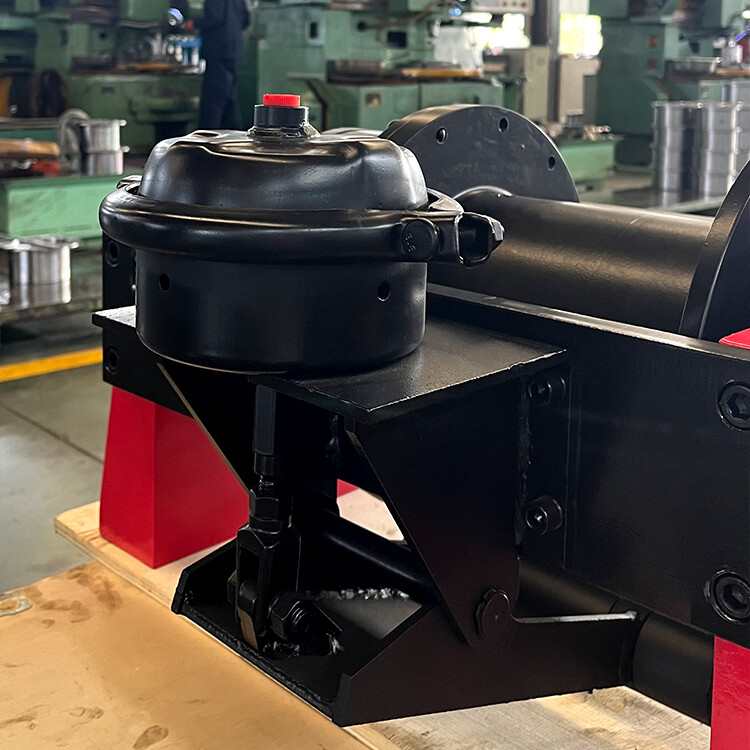

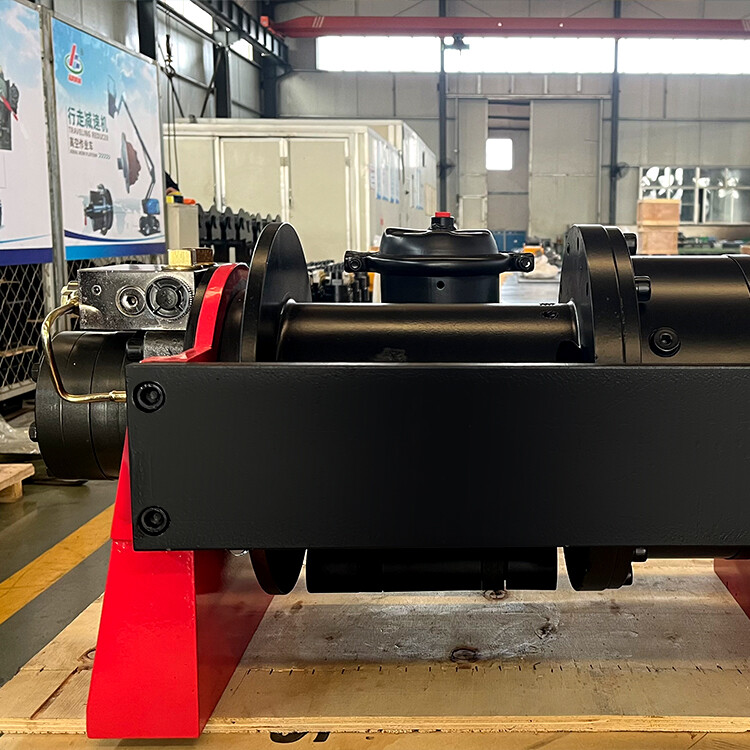

Hydraulic Winch
ZJJ08A Series
Technical Parameters
| Flow(L/min) | Single rope pull of first layer ( KN ) | Rope speed of first layer ( m/min ) | Rope diameter
(mm ) | Rope capacity(m) | Working Pressure
( Mpa ) |
| 60 | 78 | 7.5 | Φ16 | 35 | 17 |

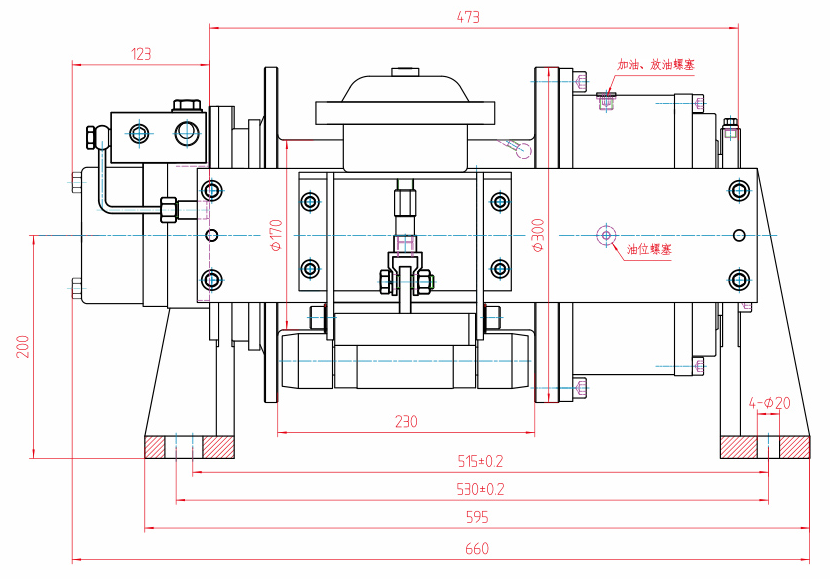

Note: The overall dimensions, motor interface dimension, reduction ration and other dimensionsall could be designed as required.
